Haulotte Scissor Battery / electric Indoor and outdoor

Compact 14AE

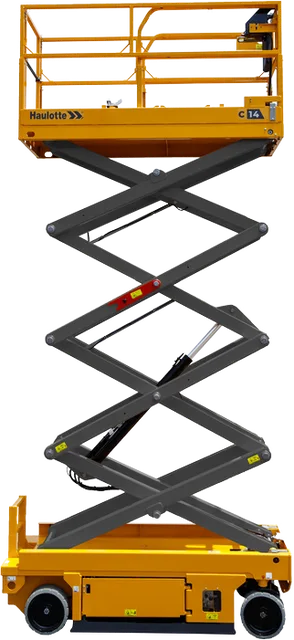

Name: Compact 14AE – Electric Scissor Lift
Brand: Haulotte
Availability: InStock

Haulotte · Electric Scissor Lift

13.75mWorking height

320kgPlatform capacity

11.75mPlatform height

3,070kgWeight

Integrated access ladder, impact-resistant counterweight, AC motor and charging cable
Reinforced guardrails with additional vertical bars for maximum durability
Folding guardrails for use even in low-clearance areas; forklift pockets on both the sides and the ends
Indoor/outdoor use*. Drivable at full height
Fully proportional controls for precise handling (AC motor)
Ergonomic upper control box with joystick and speed selection
Haulotte Activ'Energy Management / long-life battery protection system

Contact us

Call for stock availability, delivery time and price.

Technical specifications

Compact 14AE technical data sheet

These values are taken from the manufacturer's catalogue. Please consult our team about any items that may vary with site conditions.

Compact 14AE technical specifications
Working height	13.75 m
Platform height	11.75 m
Platform capacity (indoor)	320 kg (occupants: 3)
Platform extension – capacity	120 kg
Max. drive height	11.75 m
Platform length	2.40 m
Platform width	1.17 m
Length	2.50 m
Width	1.20 m
Stowed height	2.72 m
Dimensions	2.40 × 1.17 × 2.72 m
Weight	3070 kg
Wheelbase	1.86 m
Ground clearance	12.5 cm
Turning radius (outside)	1.83 m
Drive speed	0.7 / 1.5 / 4.2 km/h
Batteries	24V – 225Ah [C20]
Brand	Haulotte
Category	Scissor Lifts
Power type	Battery / electric
Operating environment	Indoor and outdoor
