Haulotte Scissor Battery / electric Indoor and outdoor

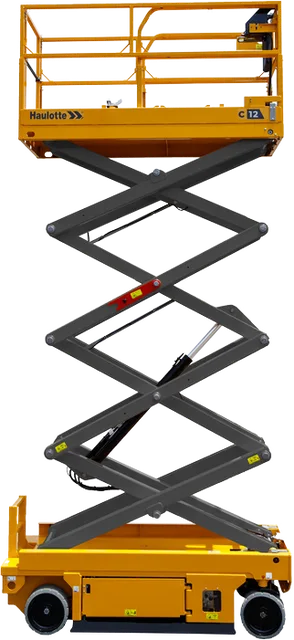

Compact 12AE
Haulotte · Electric Scissor Lift
11.75mWorking height
320kgPlatform capacity
9.75mPlatform height
2,940kgWeight
- Integrated access ladder, impact-resistant counterweight, AC motor and charging cable
- Reinforced guardrails with additional vertical bars for maximum durability
- Folding guardrails for use even in low-clearance areas; forklift pockets on both the sides and the ends
- Indoor/outdoor use*. Drivable at full height
- Fully proportional controls for precise handling (AC motor)
- Ergonomic upper control box with joystick and speed selection
- Haulotte Activ'Energy Management / long-life battery protection system
Contact us
+90 216 999 95 99Call for stock availability, delivery time and price.
Technical specifications
Compact 12AE technical data sheet
These values are taken from the manufacturer's catalogue. Please consult our team about any items that may vary with site conditions.
PDF Product catalogueCompact 12 / 14 · Haulotte technical brochureWhere is it used?
- Warehouses and logistics centres
- Factory maintenance and repair
- Electrical and mechanical installations
- Facade and ceiling work
- Shopping centres and indoor spaces
| Working height | 11.75 m |
|---|---|
| Platform height | 9.75 m |
| Platform capacity (indoor) | 320 kg (occupants: 3) |
| Platform capacity (outdoor) | 320 kg (occupants: 1) |
| Max. drive height | 9.75 m |
| Platform length | 2.40 m |
| Platform width | 1.17 m |
| Dimensions | 2.47 × 1.20 × 2.50 m |
| Weight | 2940 kg |
| Wheelbase | 1.86 m |
| Ground clearance | 12.5 cm |
| Turning radius (outside) | 1.83 m |
| Batteries | 24V – 225Ah [C20] |
| Brand | Haulotte |
| Category | Scissor Lifts |
| Power type | Battery / electric |
| Operating environment | Indoor and outdoor |
Values are based on manufacturer data and are for information only.
